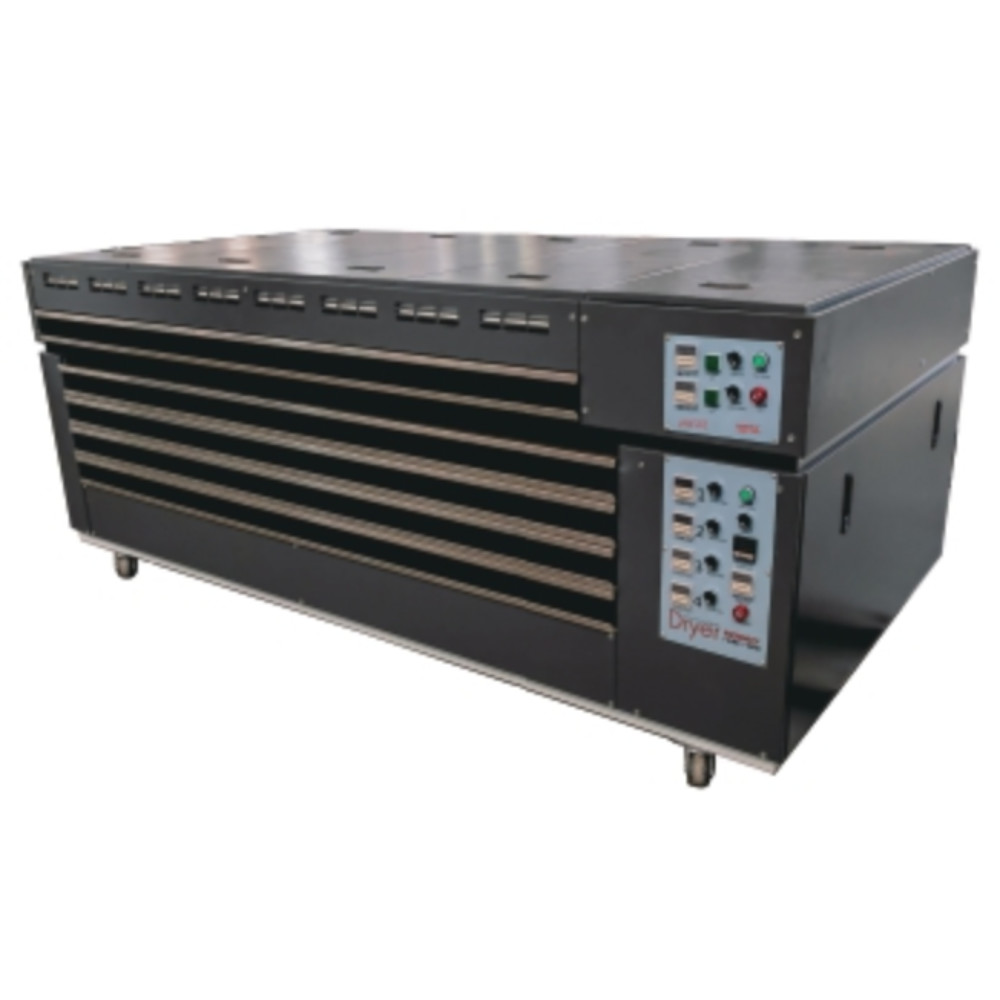

PRY4280 Mixed Light Source Treatment Plates Drying Machine

ข้อมูลพื้นฐาน
Place of Origin: China
ชื่อแบรนด์: PRINTYOUNG
ได้รับการรับรอง: CE
Model Number: PRY4280
Minimum Order Quantity: 1 Set
ราคา: US 10000 Set
Packaging Details: Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 30 Set/Sets per Month
Model No.: PRY4280 Machine Size: 2800 * 1700 * 900 mm
Voltage: 380V 50Hz Power: 8 kw

PRY4280 Mixed Light Source Treatment Plates Drying Machine 0
PRY4280 Light Treatment Drying Machine
PRY4280 Mixed Light Source Treatment Plates Drying Machine 1
Features
Light treatment with imported 65W/UVC mixed imported 80W/UVA mixed light source.After the completion of the removal of adhesive work,the automatic switch to the post-exposure work,not only save the removal of the plate to the exposure machine time,but also effectively protect the light source life of the main exposure machine,but also solve the risk of damage to the plate due to handling.Have strong ozone device,to avoid corrosion of ozone equipment affect the quality of plate making,after baking machine has four layer drying cabinet,edition of trilateral hot air circulation,heating were set up throughout constant temperature device,ensure the oven temperature difference between +3℃ or less everywhere,configure automatic constant temperature into the wind and strong exhaust device,ensure that the wind and temperature uniformity,promptly eliminate ozone to speed up the drying speed.
Technical Parameters
PRY Light Treatment Drying Machine
Model No.
PRY4280
PRY5280
Machine Size
2800 * 1700 * 900 mm
2800 * 1900 * 900 mm
Voltage
380V 50Hz
380V 50Hz
Power
8 kw
10.5 kw
PRY4280 Mixed Light Source Treatment Plates Drying Machine 2
PRY4280 Mixed Light Source Treatment Plates Drying Machine 3
PRY4280 Mixed Light Source Treatment Plates Drying Machine 4
PRY4280 Mixed Light Source Treatment Plates Drying Machine 5
PRY4280 Mixed Light Source Treatment Plates Drying Machine 6
PRY4280 Mixed Light Source Treatment Plates Drying Machine 7
