Name: 4RS200 Intelligent Automatic Solvent Recovery Machine
Brand: Shanghai Printyoung International Industry Co.,Ltd
SKU: 4RS200
Price: 14000 USD
Availability: InStock

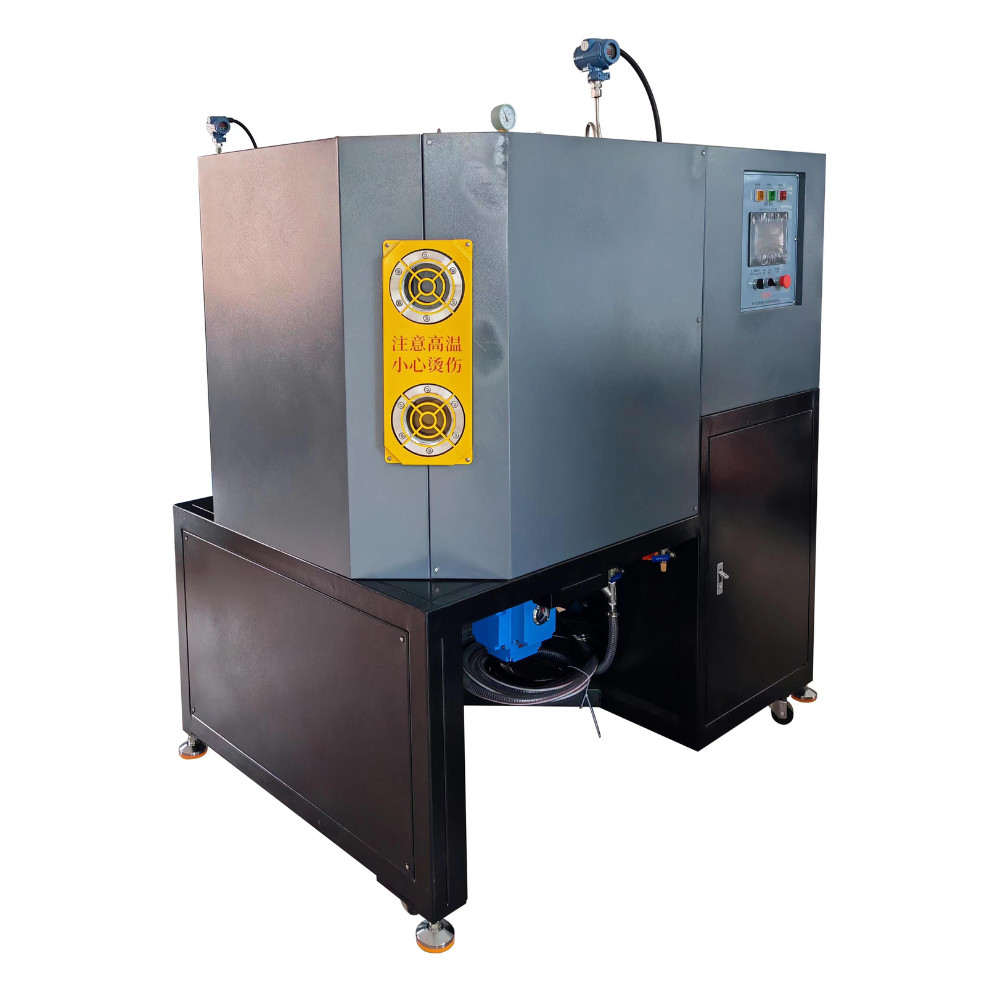

4RS200 Intelligent Automatic Solvent Recovery Machine

ข้อมูลพื้นฐาน

Place of Origin:	China
ชื่อแบรนด์:	PRINTYOUNG
ได้รับการรับรอง:	CE
Model Number:	4RS200

Minimum Order Quantity:	1 Set
ราคา:	US 14000 Set
Packaging Details:	Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	30 Set/Sets per Month

ติดต่อตอนนี้

Machine Size:

1600 * 1100 * 1860 mm

Voltage:

380V 50Hz

Power:

12 kw

Weight:

580 kg

4RS200 Intelligent Solvent Recovery Machine

Features

Our company successfully developed the fourth generation of washing machine,continue to successfully develop the fourth generation of more intelligent,automated,safer, more efficient,unattended,uninterrupted work,non-contact level control of environmental protection intelligent solvent recovery machine.The equipment adopts the latest structure, the top cover is set with slotted flange,the sealing ring is made of solid round casting with high temperature resistance,the sealing effect is good,can be used repeatedly,not easy to damage.Top cover with arch structure,increase pressure resistance,increase solvent storage.The heating tube is equipped with anti-high temperature and explosion-proof sheath device,automatic input of waste solvent,automatic constant temperature,automatic cold water circulation,and equipped with an observation window to observe the storage amount of heat conduction oil and waste solvent.Use explosion-proof solid state relay,do not need to use dry vacuum pump and refrigerator, but the cooling effect is better.The working process can be unattended,in the recycling process,automatic replenished waste solvent halfway,uninterrupted work.Equipped with automatic discharge slag electric valve to realize the function of unattended machine.In order to solve the problem of carbon accumulation in the interlayer of the recycling machine due to long-term heating of the thermal oil,which gradually thickens the carbon accumulation in the interlayer over time, seriously affecting the thermal conductivity effect,resulting in a serious reduction in efficiency and a serious waste of electricity and time,the first to install a thermal oil circulation device(with a patent), which not only solves the problem of carbon accumulation in the interlayer,but also solves the problem of carbon accumulation in the interlayer.It also greatly improves the recovery efficiency and improves the temperature uniformity of the thermal oil.Prolong the service life of the machine and heat transfer oil.

Technical Parameters

4RS200 Intelligent Solvent Recovery Machine
Model No.	4RS200
Machine Size	1600 * 1100 * 1860 mm
Voltage	380V 50Hz
Power	12 kw
Weight	580 kg
