| <i>Max.</i> <b>สูงสุด</b> <i>Laminating Width</i> <b>ความกว้างเคลือบ</b>: | 370 มม. 500 มม. 650 มม | ความเร็วในการใช้งาน: | 13 เมตร/นาที |
|---|---|---|---|
| ความหนาของกระดาษ: | 125 ~ 350 แกรม | อุณหภูมิเคลือบ: | 90 ~ 110 องศา (ปกติ) |
| กำลังทั้งหมด: | 2000 ว | ม้วนทำความร้อนบน: | เหล็กม้วน (มาตรฐาน) |
| ม้วนทำความร้อนที่ต่ำกว่า: | ยางม้วน | แผงควบคุม: | ระบบดิจิตอลแอลอีดี |

|

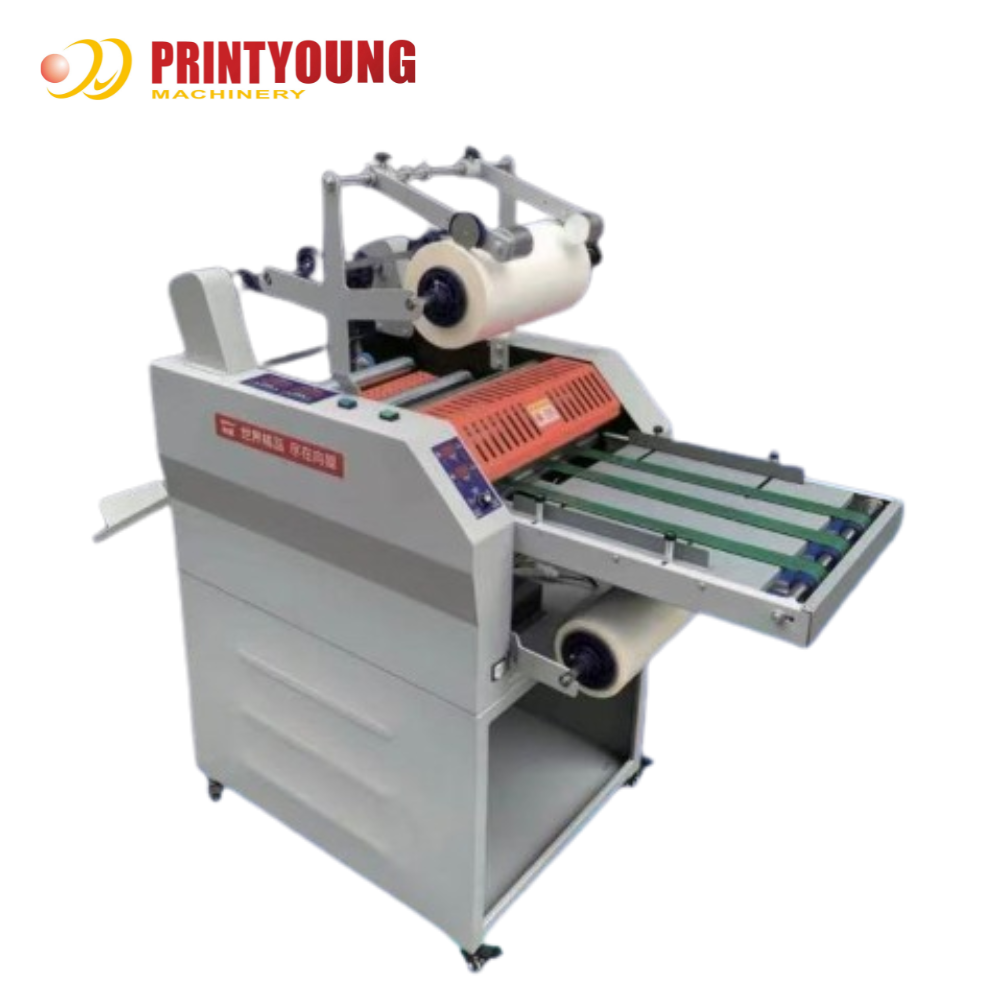

PRY-390D Film Laminator
|
|||
|
Max. Laminating Width
|
370 mm
|
500 mm | 650 mm |
|
Operating Speed
|
13 meters/minute
|
||
|
Paper Thickness
|
125 ~ 350 gsm
|
||
|
Laminating Temperature
|
90 ~ 110 degree (normal)
|
||
|
Total Power
|
2000 W
|
||
|
Temperature Control
|
upper / lower temperature are controlled separately
|
||
|
Upper Heating Roll
|
steel roll (standard)
|
||
|
Lower Heating Roll
|
rubber roll
|
||
|
Control Panel
|
digital LED system
|
||
|
Feeding Mode
|
manual
|
||
|
Overlap
|
yes
|
||
|
Auto Bursting
|
yes
|
||
|
Optional
|
two sides lamination with auto cut function (can be option in future)
|
||
|
Slitting Function
|
yes
|
||
|
Anti-curling Function
|
yes
|
||
|
Conveyor Belt Number
|
3
|
4 | 5 |
|
Optional
|
lower / upper rewinder (must appoint when order)
|
||
|
Machine Size
|
150 * 60 * 126 cm
|
150 * 73 * 126 cm | 150 * 88 * 126 cm |
|
Option
|
compressor
|
||
